70197298

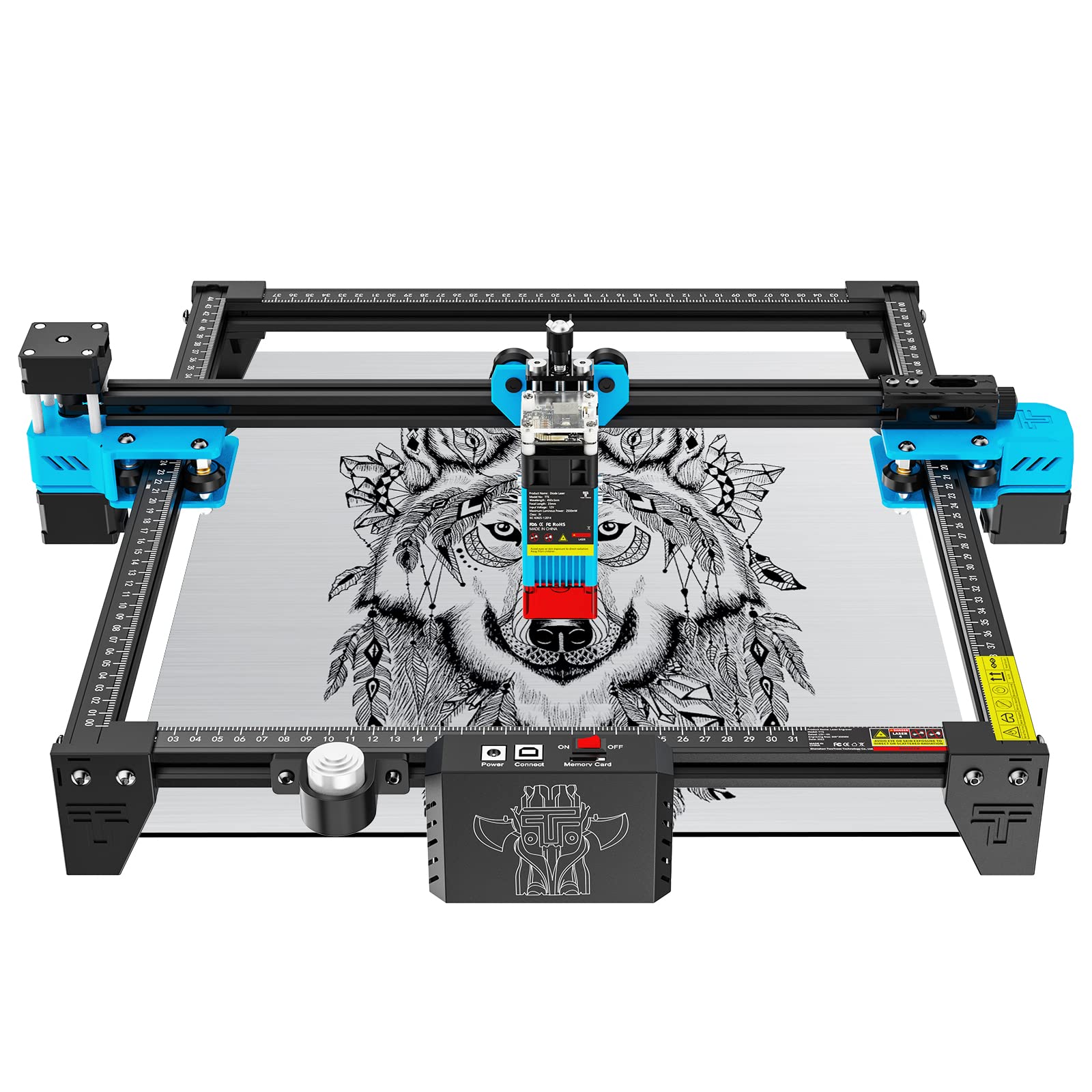

Twotrees TTS-25 /TTS-55 Laser Engraver Q1: What is the difference between the Twotrees TTS-25 and TTS-55? A1: TTS-25 and TTS-55 have different laser modules. TTS-25, laser power: 2.5W, machine output power: 20W, mainly used for engraving. (Can engrave wood, plywood, acrylic, paper, kraft paper, leather, anodized aluminum, MDF, etc. Laser can cut 2mm plywood, 0.7mm leather) TTS-55, laser power: 5.5W (compressed spot), machine output power: 40W, for engraving and cutting. (The laser with compressed spot has stronger engraving and cutting ability, it can engrave stainless steel, cobblestone, painted metal. The laser can cut 5mm plywood, 3mm acrylic board. 0.7mm leather, etc. ) Q2: How to assemble the machine and wiring A2: 60% pre-assembled. Customers can follow the instructions on this product page or the assembly video to complete the assembly. Q3: What functions can be upgraded with TTS-25 and TTS-55? A3: Thanks to the powerful 302-bit motherboard, TTS-25 and TTS-55 can upgrade vibration switch, flame sensor, air assist system, limit switch, screen operation. In addition, we also have an aluminum extrusion upgrade kit, which can upgrade the engraving area to 420*400mm (Customers purchase the kit separately) Magnetically attached laser shield The magnetically attached laser shield makes removal a breeze, and the crimson case shields 98% of the laser to protect your eyes. The laser shielding shell has reserved air-assisted holes. Fixed focus laser There is no need to adjust the focal length before engraving, and the focal length is only 23mm. Compared with other long-focus lasers, short-focus lasers have stronger engraving and cutting capabilities, and the laser power of fixed-focus lasers is more stable than that of zoom lasers. Z-axis lift design The CNC anodized lifting device is driven by the rod shaft guide, and the laser focusing can be realized by adjusting the top knob, which is suitable for adjusting the focal length when cutting objects of different thicknesses. Of course, it can also be upgraded to other higher power laser modules Read more Cable management with bellows The bellows manages the direction of the cable, making it safer for the machine to move without damaging the cable. Y-axis dual motor drive Synchronous dual motors make the Y-axis drive smoother. (Other brands of machines that use a single motor drive will have one-sided lag when moving) The left and right Y-axis extrusion is driven by 4 POM wheels, which are quiet at high speed, light in weight and small in inertia, suitable for high-speed engraving. Compatible with Y-axis rotary roller You can easily connect the Y Axis Rotary Roller to the Y axis of the engraving machine's main board. Compatible with Lightburn and Lasergrbl. (Y axis rotary roller needs to be purchased separately) Read more Adding digital scale markings 4 profiles with digital scale markings, very clear and easy to measure the size of the item being engraved X-axis tensioner X-axis tensioner can adjust the tension of the belt, making the machine's engraving accuracy higher and the engraved lines more clear and accurate Multi-grade fixed focus column Multi-stage positioning column, more convenient to adjust the focus when engraving objects of different thickness Independent power switch The motherboard has added an independent power switch, which can turn off the power in an emergency, which can reduce the damage to the motherboard caused by illegal power failure Read more Various control methods Twotrees TTS-25/TTS-55 supports mobile phone APP/computer offline operation, USB online operation. 1. How to connect the computer to the TTS engraving machine? A: Install LaserGRBL or Lightburn, use a USB connection between the computer and the engraving machine, and install the CH340 driver. (There are software and drivers in the TF card in the package) The CH340 driver must be installed, otherwise it cannot be connected to the computer. If you can't open the file in the SD card, you can download it online, such as searching for LaserGRBL, Lightburn, CH340 driver, etc. 2. How to use the App to control the engraving machine on the mobile phone? Download MKSLaser on the mobile phone. Install the CH340 driver and MKS Laser tool on the computer, obtain the IP, and enter the IP on the mobile phone MKSLaser to control the engraving machine. There are instructional videos on this product page. You can complete the settings according to the video. If you have further questions, please send us a message and we will assist you. Carving area 300x300mm Engraving accuracy 0.1mm Engraving speed 10000mm/min Laser wavelength 445±5nm Power supply 12V 4A DC Compatible Laser Software Lightburn, LaserGRBL, MKSLaser, etc Support system Windows, Mac, Android, IOS Engraving method USB/ APP/ PC offline File formats NC, DXF, BMP, JPG, PNG, G-CODE, etc. Continuous working time ≤24 hours Engraving mode graphic engraving, file engraving, scan engraving, outline engraving, pixel engraving Working environment temperature 5-40 degrees Celsius, humidity 20-60%RH Carving material Wood, Plastic, Paper, Leather, Bamboo, Sponge Paper, Alumina, Stainless Steel, Chevron, Acrylic Packing weight 4.6KG Machine size 570x510x150mm Packing size 605x225x190mm (function(f) {var _np=(window.P._namespace("AplusModule"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('AplusModules-module-16-tech-specs').execute(function(resizeSpecTables) { resizeSpecTables('aplus-index-5', 'aplus-tech-spec-table', 'aplus-tech-spec-hide-loading'); }); })); Twotrees TTS-25 Twotrees TTS-55 Air assist Pump Y axis rotary roller 420x400mm Expansion kit Laser power 2.5W 5.5W Machine output power 20W 40W Motherboard 32 bit 32 bit Engraving speed 10000mm/min 10000mm/min Cutting plywood thickness ≤2mm ≤5mm Laser spot 0.172x0.038mm 0.08x0.08mm(Compression spot) WIFI and App control ✓ ✓ Laser shields and bellows ✓ ✓ Engraved stainless steel X ✓
Fixed Focus Laser: TTS-25 uses fixed focus laser, no need to adjust the focus before engraving, engraving accuracy: 0.1mm. Laser power: 2.5W, machine output power: 20W.
32-bit Motherboard: The motherboard adopts 32-bit dual-core MCU, which has a faster processing speed, and the engraving speed can reach 10000mm/min. Laser can engrave online and TF card offline engraving. Due to the built-in WIFI module, you can also use mobile phone App and computer WEB for engraving.
Software Compatibility: Twotrees TTS-25/55 series engraving machines are compatible with most engraving software. For example, free software: LaserGRBL (for Windows), paid software: Lightburn (for Windows, Mac), mobile app: MKSLaser (for Android and IOS system), can be downloaded from the mobile store.
Capability of engraving and cutting: TTS-25 is mainly used for engraving. TTS-25 laser can engrave wood, plywood, paper, leather, bamboo, sponge paper, alumina, acrylic, etc. Laser can cut 2mm plywood. Working Area: 300x300mm.
New Upgrades: Twotrees TTS-25 is an upgraded version of TT-2.5. TTS-25 aluminum profile added digital scale, upgraded to 32-bit motherboard. Add power switch to motherboard. Magnetic laser protection covers, CNC Z-axis lifting devices, Cable management using bellows, Multi-grade metal positioning posts, etc. If you have any questions, please contact us.
